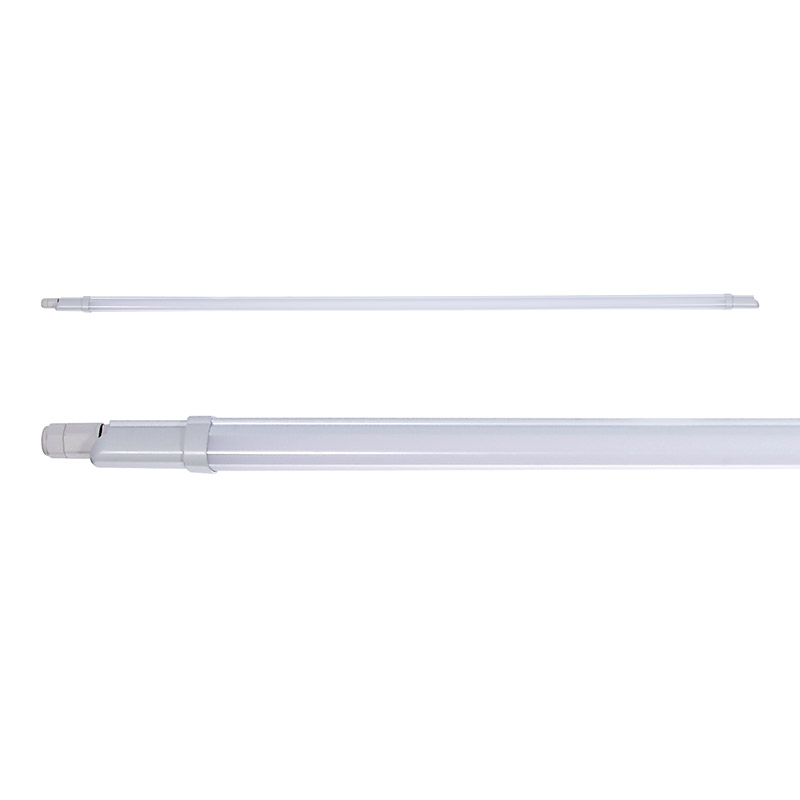

Product name SylSplash 1500 IP65 4300lm 840
Technology LED
Cap/Base N/A
Housing PC Polycarbonate
General application Logistics & Industry
Operating temperature range (°C) -20°C - 40°C
Performance ambient temperature Tq (°C) 25
ETIM Class EC002892
E-number FI 4278194
Warranty 3 years
Optical data
Fixture luminous flux (lm) 4300
Luminaire efficacy (lm/W) 96
Colour temperature (K) 4000
CRI (Ra) 80
Colour Variation Initial (SDCM) SDCM5
Beam Angle (°) 125
Distribution type Diffuse
Photobiological Risk Group RG0
Electrical data
Total power consumption (W) 45
Mains voltage (V) 220-240V~
Lamp power factor 0.9
Electrical protection Class II
Control gear type LED driver constant current
Dimmable No
Drive current (mA) 110
Drive current - Range (mA) 180mA / 220mA
Inrush Current (A) 15
Inrush Duration (µs) 400
Glow Wire Test (°C) 650
Energy Efficiency Class (A->G) of contained light source E
Nominal Frequency (Hz) 50/60Hz
Max. Luminaires per 10A B Breaker 8
Max. Luminaires per 13A B Breaker 12
Max. Luminaires per 16A B Breaker 16
Max. Luminaires per 20A B Breaker 20
Lifetime data
Lifespan L70 B50 30000
Lifespan L70 B20 30000
Lifespan L70 B10 30000
Lifespan L80 B50 30000
Lifespan L80 B20 26000
Lifespan L80 B10 21000
Lifespan L90 B50 20000
Lifespan L90 B20 13000
Lifespan L90 B10 11000
Physical data
Housing colour White
IP rating IP65
IK rating IK04
Diffuser finish Opal
Diffuser material PC Polycarbonate
Nominal Product Length (mm) 1530
Nominal Product Width (mm) 53
Nominal Product Height (mm) 35
Weight (kg) 0.4
