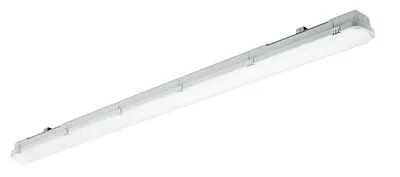

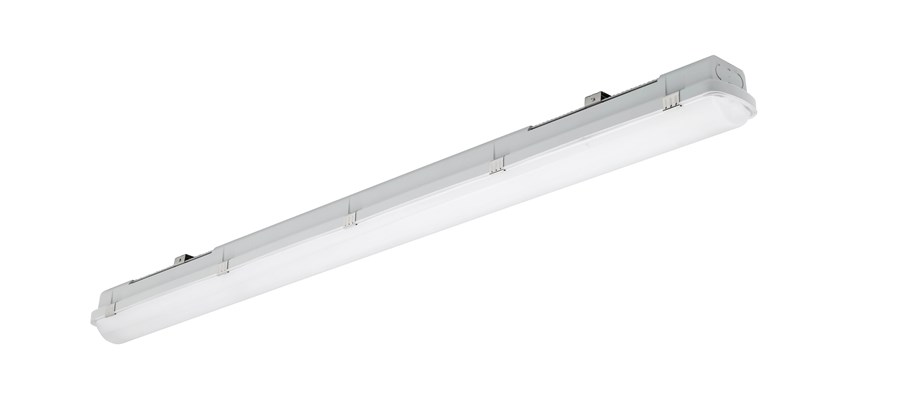

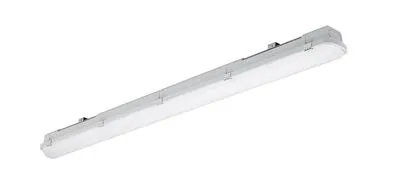

Product name Resisto 1200 IP66 2800lm 830
Technology LED
Housing PC Polycarbonate
General application Logistics & Industry
Operating temperature range (°C) -20°C - 40°C
Performance ambient temperature Tq (°C) 25
ETIM Class EC002892
E-number FI 4357040
Warranty 5 years
Optical data
Fixture luminous flux (lm) 2800
Luminaire efficacy (lm/W) 133
Colour temperature (K) 3000
CRI (Ra) 80
Colour Variation Initial (SDCM) SDCM5
Colour Consistency (SDCM) 5
Beam Angle (°) 110
Distribution type Diffuse
Glare control < 22
Photobiological Risk Group RG1
Electrical data
Total power consumption (W) 21
Mains voltage (V) 220-240V~
Lamp power factor 0.95
THD (at 230 V, 50 Hz, full load, at 100% dimming level) ? xx.x % 20
Electrical protection Class I
No. Of switching cycles before premature failures >50000
Dimmable No
Drive current (mA) 350
Inrush Current (A) 6.1
Inrush Duration (µs) 18
Glow Wire Test (°C) 850
Nominal Frequency (Hz) 50/60Hz
LED Flickering Rate Ultra low (5% or less)
Max. Luminaires per 10A C Breaker 60
Max. Luminaires per 13A C Breaker 79
Max. Luminaires per 16A C Breaker 97
Max. Luminaires per 20A C Breaker 121
Max. Luminaires per 10A B Breaker 60
Max. Luminaires per 13A B Breaker 79
Max. Luminaires per 16A B Breaker 97
Max. Luminaires per 20A B Breaker 121
Lifetime data
Lifespan L70 B50 100000
Lifespan L80 B20 69000
Lifespan L90 B10 31000
Physical data
Housing colour Grey
IP rating IP66
IK rating IK08
Diffuser finish Frosted
Diffuser material PC Polycarbonate
Nominal Product Length (mm) 1200
Nominal Product Width (mm) 87
Nominal Product Height (mm) 80
Weight (kg) 1.5
