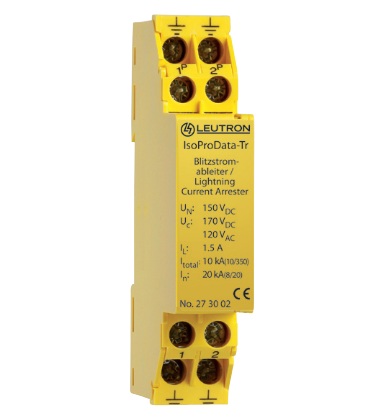

leutron isoprodata-tr túlf.lev túlfeszültség levezető
LEUTRON IsoProData-Tr TÚLF.LEV TÚLFESZÜLTSÉG LEVEZETŐ
|
Gyártói cikkszám:
|
273002
|
|
Vonalkód:
|
5998282147344
|
|
Szín:
|
SÁRGA
|
|
Cikkszám:
|
HG902
|
|
Megnevezés teljes név:
|
LEUTRON IsoProData-Tr TÚLF.LEV TÚLFESZÜLTSÉG LEVEZETŐ
|
több
keyboard_arrow_down
keyboard_arrow_up
Leírás
Leutron 273002 IsoProData-Tr TÚLFESZÜLTSÉG LEVEZETŐ
IEC category D1 / C2 / C1 / C3
Nominal voltage DC UN 150 V=
Max. continuous operating voltage DC Uc 170 V=
Max. continuous operating voltage AC (50/60 Hz) Uc 120 V~
Nominal current IL 1,5 A
Leakage current at Uc DC ? 0.001 µA
Response time tA ? 50 ns
C2 nominal discharge current (8/20 µs) In 20 kA
D1 lightning impulse current (10/350 µs) total Itotal 10 kA
D1 lightning impulse current (10/350 µs) per line Iimp 5 kA
Protection level, residual voltage line-ground at In resp. 1 kV/µs Up ? 800 V
Capacitance, line-earth C < 0.005 nF
Insulation resistance Risol > 10 G?
Operating temperature range TU -25 - +85 °C
Max. conductor cross section 2.5mm2 solid or 1.5mm2 flexible with sleeve
Installation dimensions (H × W × D) 17,5 x 87 x 58 mm
Enclosure material / colour polycarbonate (halogen-free) UL 94-V0 / yellow
Type of connection Screw terminals
Degree of protection (IEC EN 60529) IP 20
Mounting 35 mm DIN rail form C (EN 60715 )
LEUTRON IsoProData-Tr TÚLF.LEV TÚLFESZÜLTSÉG LEVEZETŐ
Online ár:
117 490 Ft / db
Nincs készleten
×
